Assemblage H500M

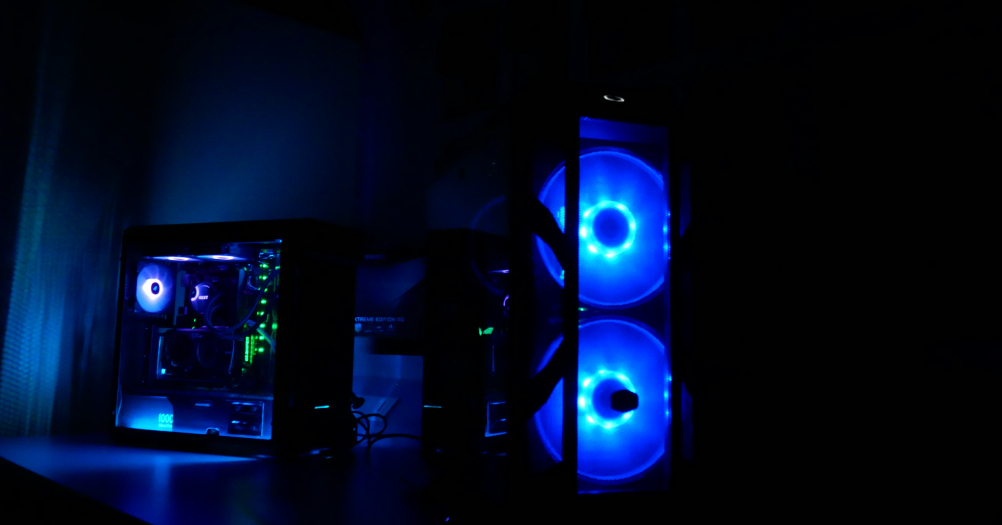

Assemblage et test du boitier H500M de chez Cooler Master avec une configuration très haut de gamme. La video en bas de page.
Les composants choisis :
- Chassis : H500M
- Alimentation : Corsair RM750X 80+ Gold
- Carte Mère : Asus Rog Strix Z370 F Gaming
- Processeur : Intel Core i7-8700K
- Memoire : 4 x 8 Go DDR4 Ballistix Tactital RGB

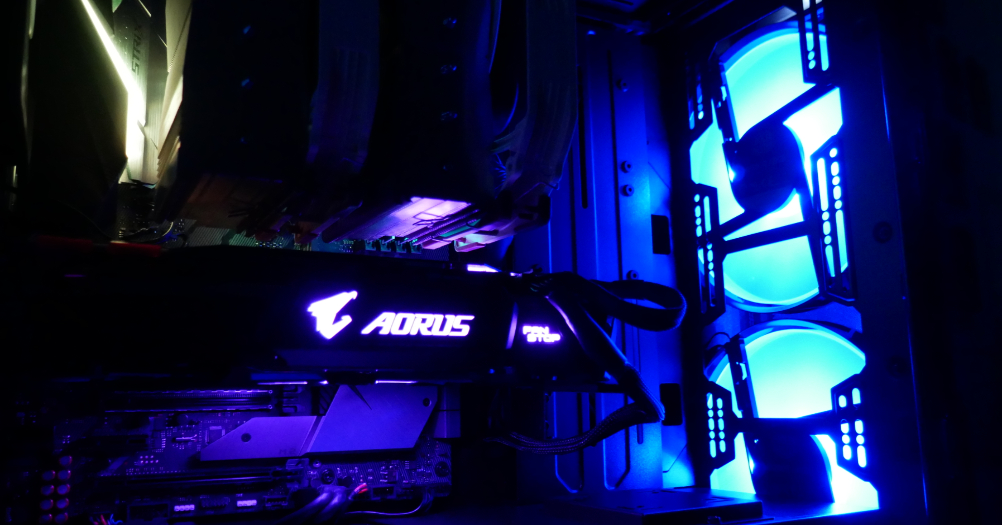

- Carte Video : Aorus Geforce GTX 1080Ti Extreme Edition
- Disque dur : 1 To SSD WD Blue
- Disque dur : 2 To Seagate 7200 tr/min

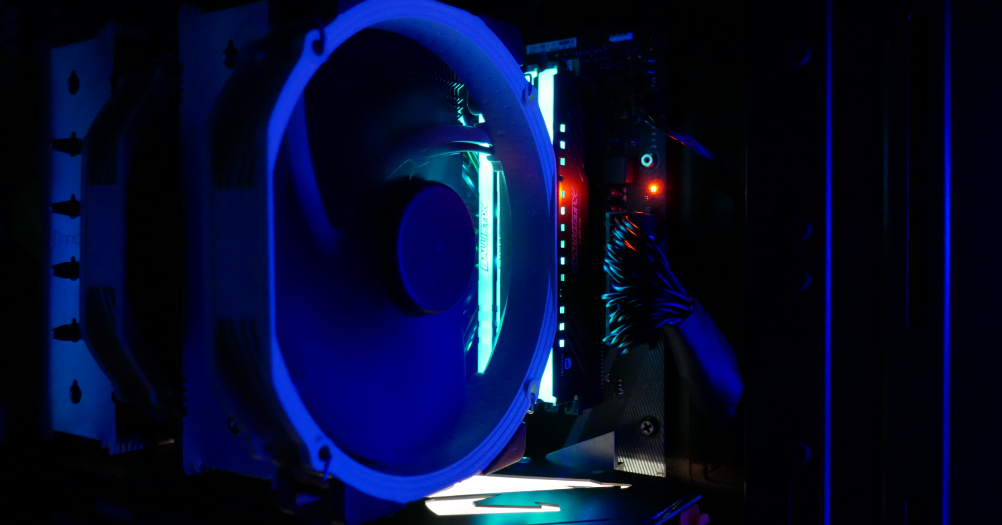

- Refroidisseur : Noctua NH-D15
Specifications H500M :
Product Name MasterCase H500M
Model Number MCM-H500M-IHNN-S00
Available Color Iron Grey
Materials Outlook: Steel Mesh, Glass
Body: Steel
Side panel: Tempered Glass
Dimensions (LxWxH) 544 x 248 x 546mm / 21.4 x 9.8 x 21.5 inch
Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX (support upto 12" x 10.7")
Expansion Slots 7 + 2 (Support vertical graphics card installation)
5.25" Drive Bays 0
2.5" / 3.5" Drive Bays 2
2.5" SSD Drive Bays 6
I/O Port USB 3.1 Type-C x 1 USB 3.0 Type-A x 4 Audio In & Out (supports HD Audio)
Pre-installed Fan(s)
- Front 200mm ARGB Fan x 2 (Speed: 800RPM / Connector: 3Pin + ARGB 3pin)
Pre-installed Fan(s)
- Rear 140mm fan x 1 (Speed: 1200RPM / Connector: 3Pin)
Fan Support
- Top 120 fan x 3 or 140mm/200mm fan x 2 Fan Support
- Front 120/140mm fan x 3 or 200mm fan x 2 Fan Support
- Rear 120/140mm fan x 1 Liquid Cooling Support
- Top 120mm, 140mm, 240mm, 280mm, 360mm (maximum thickness clearance 43mm)
Liquid Cooling Support - Front 120mm, 140mm, 200mm, 240mm, 280mm, 360mm (70mm clearance w/radiator lid & M.portremoved)
Liquid Cooling Support - Rear 120mm, 140mm
Clearance - CPU Cooler 190mm
Clearance - Graphics Card 412mm
Clearance - Power Supply 200mm
Power Supply Support Bottom Mount, ATX PS2
EAN Code 4719512072165
UPC Code 884102044663
