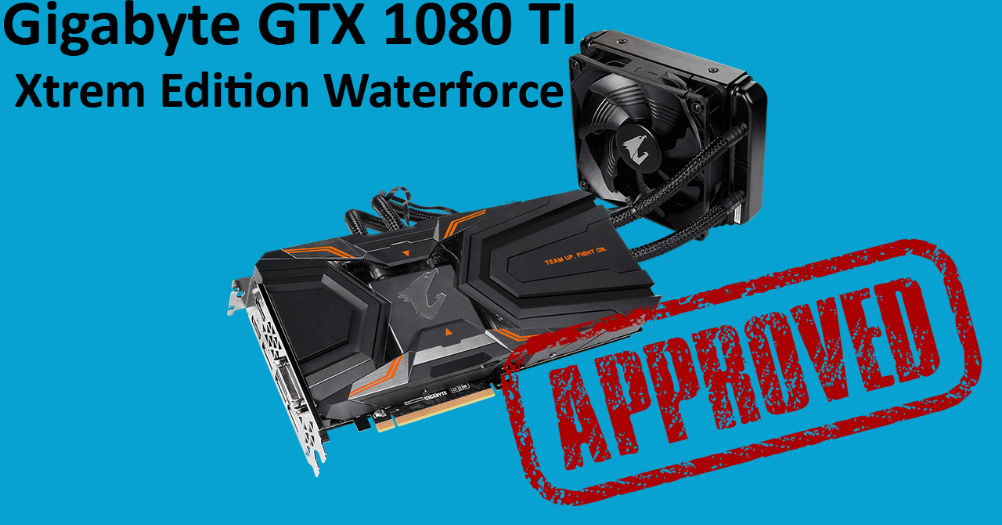

Geforce GTX 1080TI Xtreme Edition Waterforce
Un focus rapide sur la Gigabyte Aorus Xtreme Edition Waterforce, présentation de la carte, test en charge, température
Le ventilateur utilisé sur le radiateur est un NZXT AER RGB PWM
http://www.gigabyte.fr/Graphics-Card/...
Graphics Processing GeForce® GTX 1080 Ti
Core Clock :
Boost:1746 MHz / Base: 1632 MHz in OC mode
Boost: 1721 MHz / Base: 1607 MHz in Gaming mode
(Reference Card Boost: 1582 MHz / Base: 1480 MHz)
CUDA® Cores 3584
Memory Clock OC mode: 11448 MHz
Gaming mode: 11232 MHz
Memory Size 11 GB Memory Type GDDR5X Memory
Bus 352 bit
Card Bus PCI-E 3.0 x 16
Output Dual-link DVI-D *1 HDMI-2.0b*3 (Max Resolution: 4096x2160 @60 Hz) Display Port-1.4 *3 (Max Resolution: 7680x4320 @60 Hz) (VR mode: DP*3, HDMI*3) (Standard mode: Dual-link DVI-D*1, DP1.4*3, HDMI 2.0b*1)
Digital max resolution 7680x4320 Multi-view 4
Card size H=36.41 L=266.67 W=122.6 mm
PCB Form ATX
DirectX 12 API feature level 12_1
OpenGL 4.5
Recommended PSU 600W
Power Connectors 8 pin*2 SLI support 2-way SLI HB
Accessories AORUS Metal Sticker/ PCIE Power cable (Dual 6-pin to 8-pin)
